Point Processes

Spring 2023

Author

Serge Rey

Published

February 9, 2023

Introduction

Thus far we have been looking at a collection of points as a point pattern.

Now we want to take a different view of that pattern, one that sees the pattern as the outcome of a process.

A point process is a statistical model that will generate point patterns with particular characteristics.

From a scientific point of view we are interested in making inferences about the process that may have generated our point pattern.

Properties of Point Processes

First Order Properties

First Order Properties: Spatial Analysis

Mean value of the process in space

  • Variation in mean value of the process in space

  • Global, large scale spatial trend

First Order Property of Point Patterns, Intensity: \(\lambda\)

  • Intensity: \(\lambda\) = number of events expected per unit area

  • Estimation of \(\lambda\)

  • Spatial variation of \(\lambda\), \(\lambda(s)\), \(s\) is a location

\[\lambda(s) = \lim_{ds\rightarrow 0}\left\{ \frac{E(Y(ds))}{ds} \right\}\]

Second Order Property

Second Order Properties: Spatial Analysis

Spatial Correlation Structure

  • Deviations in values from process mean
  • Local or small scale effects

Second Order Property of Point Patterns

  • Relationship between number of events in pairs of areas

  • Second order intensity \(\gamma(s_i,s_j)\)

\[\gamma(s_i,s_j) = \lim_{ds_i\rightarrow 0,ds_j\rightarrow 0}\left\{ \frac{E(Y(ds_i)Y(ds_j))}{ds_ids_j} \right\}\]

Spatial Stationarity

First Order Stationarity \[\lambda(s) = \lambda \forall s \in A\] \[E(Y(A)) = \lambda \times A\]

Second Order Stationarity \[\gamma(s_i,s_j) = \gamma(s_i - s_j) = \gamma(h)\]

  • \(h\) is the vector difference between locations \(s_i\) and \(s_j\)

  • \(h\) encompasses direction and distance (relative location)

  • Second order intensity only depends on \(h\) for second order stationarity

Spatial Isotropy and Stationarity

Isotropic Process

  • When a stationary process is invariant to rotation about the origin.

  • Relationship between two events depend only on the distance separating their locations and not on their orientation to each other.

  • Depends only on distance, not direction

Usefulness

  • Two pairs of events from a stationary process separated by same distance and relative direction should have same “relatedness”

  • Two pairs of events from a stationary and isotropic process separated by the same distance (irrespective of direction) should have the same “relatedness”

  • Both allow for replication and the ability to carry out estimation of the underlying DGP.

Invariance

Under Translation

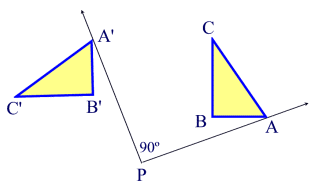

Under Rotation

Figure 1: Invariance

Point Processes

Complete Spatial Randomness

CSR

  • Standard of Reference

  • Uniform: each location has equal probability

  • Independent: location of points independent

  • Homogeneous Planar Poisson Point Process

Poisson Point Process

Intensity

  • number of points in region \(A: N(A)\)

  • intensity: \(\lambda = N/|A|\)

  • implies: \(\lambda |A|\) points randomly scattered in a region with area \(|A|\)

  • e.g., \(10\times 1\) (points per \(km^2\))

Poisson Distribution \(N(A) \sim Poi(\lambda |A|)\)

Poisson Distribution

Single Parameter Distribution: \(\lambda |A|\)

  • Generally, \(\lambda\) is the number of events in some well defined interval

    • Time: phone calls to operator in one hour

    • Time: accidents at an intersection per week

    • Space: trees in a quadrat

  • Let \(x\) be a Poisson random variable

    • \(E[x] = V[x]= \lambda |A|\)

Poisson Distribution \[P(x) = \frac{e^{-\lambda |A|} (\lambda |A|)^x}{x!}\]

Spatial Example

CSR with \(\lambda = 5/km^2\)

  • Region = Circle

    • area = \(|A| = \pi r^2\)

    • \(r=0.1\ km\) then area \(\approx 0.03 \ km^2\)

  • Probability of Zero Points in Circle \[\begin{aligned} P[N(A) = 0] &= & e^{-\lambda |A|} (\lambda |A|)^x /x!\\ &\approx&e^{-5 \times 0.03} (5 \times 0.03)^0 /0!\\ &\approx&e^{-5 \times 0.03} \\ &\approx&0.86 \end{aligned}\]

Complete Spatial Randomness (CSR)

Homogeneous spatial Poisson point process

  1. The number of events occurring within a finite region \(A\) is a random variable following a Poisson distribution with mean \(\lambda|A|\), with \(|A|\) denoting area of \(A\).

  2. Given the total number of events \(N\) occurring within an area \(A\), the locations of the \(N\) events represent an independent random sample of \(N\) locations where each location is equally likely to be chosen as an event.

  • Criterion 2 is the general concept of CSR (uniform (random)) distribution in \(A\).

  • Criterion 1 pertains to the intensity \(\lambda\).

Homogeneous Poisson Process

Implications

  1. The number of events in nonoverlapping regions in \(A\) are statistically independent.

  2. For any region \(R \subset A\): \[\lim_{|R| \rightarrow 0} \frac{Pr[exactly\ one\ event\ in\ R]}{|R|} = \lambda > 0\]

  3. \[\lim_{|R| \rightarrow 0} \frac{Pr[more\ than\ one\ event\ in\ R]}{|R|} = 0\]

:::

Homogeneous Poisson process

Implications

  • \(\lambda\) is the intensity of the spatial point pattern.

  • For a Poisson random variable, \(Y\): \[E[Y] = \lambda = V[Y]\]

  • Provides the motivation for some quadrat tests of CSR hypothesis.

    • If \(Y_R\) is the count in quadrat \(R\)

    • If \(\widehat{E[Y]}< \widehat{V[Y]}\): overdispersion = spatial clustering

    • If \(\widehat{E[Y]}> \widehat{V[Y]}\): underdispersion = spatial uniformity

Poisson Distribution \(\lambda=20\)

import numpy as np
import pandas as pd
import seaborn as sns
np.random.seed(12345)
xy = np.random.rand(20,2)
df = pd.DataFrame(data=xy, columns=['x','y'])
sns.scatterplot(x='x', y='y', data=df);
df.shape
(20, 2)

The example we just did is known as \(n-conditioning\) where we will always get \(n\) points for the CSR process.

A slightly different approach to generating a random point process is to use \(\lambda-conditioning\)

from scipy.stats import poisson
lam=20
n = poisson.rvs(lam, 1)
xy = np.random.rand(n,2)
df = pd.DataFrame(data=xy, columns=['x','y'])
sns.scatterplot(x='x', y='y', data=df);
df.shape
(26, 2)

The difference is the number of points in the pattern will always be \(n\) with \(n-conditioning\) but may not be \(n\) with \(\lambda-conditioning\). The latter allows the intensity to be drawn from a Poisson distribution, then that becomes the parameter for the draw of the point pattern.

Limitations of CSR

Stationary Poisson Process

  • homogeneous
  • translation invaratiant

Rare in practice - very few actual processes are CSR

Strawman

  • purely a benchmark

  • null hypothesis

Inhomogeneous Poisson Process (IPP)

Criteria

  1. The number of events occurring within a finite region \(A\) is a random variable following a Poisson Distribution with mean \(\int_{A}\lambda(s) ds\).

  2. Given the total number of events \(N\) occurring within \(A\), the \(N\) events represent an independent sample of \(N\) locations, with the probability of sampling a particular point \(s\) proportional to \(\lambda(s)\).

Spatially Variable Intensity \(\lambda(s)\)

  • Useful for constant risk hypothesis

  • Underlying population at risk is spatially clustered

  • Want to control for that since with individual constant risk apparent clusters would be generated.

  • Compare pattern against constant risk, not CSR.

Inhomogeneous Poisson Process

Implications

  • Apparent clusters can occur solely due to heterogeneities in the intensity function \(\lambda(s)\).

  • Individual event locations still remain independent of one another.

  • Process is not stationary due to intensity heterogeneity

HPP vs. IPP HPP is a special case of IPP with a constant intensity

CSR vs. Constant Risk Hypotheses

CSR

  • Intensity is spatially constant

  • Population at risk assumed spatially uniform

  • Useful null hypothesis if these conditions are met

Constant Risk Hypothesis

  • Population density variable

  • Individual risk constant

  • Expected number of events should vary with population density

  • Clusters due to deviation from CSR

  • Clusters due to deviation from CSR and Constant Risk

Clustered Point Processes

Clustered Patterns are more grouped than random patterns. Visually, we can observe more points at short distances. There are two sources of clustering:

  • Contagion: presence of events at one location affects probability of events at another location (correlated point process)
  • Heterogeneity: intensity λ varies with location (heterogeneous Poisson point process)

We are going to focus on simulating correlated point process in this notebook. One example of correlated point process is Poisson cluster process. Two stages are involved in simulating a Poisson cluster process. First, parent events are simulted from a λ-conditioned or n-conditioned CSR.

Second, n offspring events for each parent event are simulated within a circle of radius r centered on the parent. Offspring events are independently and identically distributed.

Contagion process of size 20 with 10 parents and 2 children

import pointpats as pp
np.random.seed(12345)
w = pp.Window([(0,0), (0,1), (1,1), (1,0), (0,0)])
draw = pp.PoissonClusterPointProcess(w, 20, 10, 0.05, 1, asPP=True, conditioning=False)
draw.realizations[0].plot(window=True, title='Contagion Point Process (10 parents)')
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1492: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1208: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1923: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:103: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)

Contagion process of size 20 with 2 parents and 10 children

import pointpats as pp
np.random.seed(12345)
w = pp.Window([(0,0), (0,1), (1,1), (1,0), (0,0)])
draw = pp.PoissonClusterPointProcess(w, 20, 2, 0.05, 1, asPP=True, conditioning=False)
draw.realizations[0].plot(window=True, title='Contagion Point Process (2 parents)')
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1492: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1208: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:1923: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)
/Users/serge/miniconda3/envs/courses/lib/python3.10/site-packages/libpysal/cg/shapes.py:103: FutureWarning: Objects based on the `Geometry` class will deprecated and removed in a future version of libpysal.
  warnings.warn(dep_msg, FutureWarning)

Inhomogenous Poisson Process

Intensity varies with a covariate

  • trend surface
  • \(\lambda(s) = exp(\alpha + \beta s)\)

Intensity varies with distance to a focus

  • \(\lambda(s) = \lambda 0(s). f( || s-s_0||, \theta)\)

Simulating An Inhomogeneous Poisson Point Process

Intensity function:

\(\lambda(s) = 100 e^{-(x^2 + y^2) / \sigma}\)

\(\sigma\) is a scale parameter here, equal to 0.5

Code
import numpy as np;  # NumPy package for arrays, random number generation, etc
import matplotlib.pyplot as plt  # For plotting
from scipy.optimize import minimize  # For optimizing
from scipy import integrate  # For integrating

plt.close('all');  # close all figures

# Simulation window parameters
xMin = 0;
xMax = 1;
yMin = 0;
yMax = 1;
xDelta = xMax - xMin;
yDelta = yMax - yMin;  # rectangle dimensions
areaTotal = xDelta * yDelta;

numbSim = 10 ** 3;  # number of simulations
s = 0.5;  # scale parameter
# Point process parameters
def fun_lambda(x, y):
    return 100 * np.exp(-(x ** 2 + y ** 2) / s ** 2);  # intensity function
#fun_lambda = lambda x,y: 100 * np.exp(-(x ** 2 + y ** 2) / s ** 2);

###START -- find maximum lambda -- START ###
# For an intensity function lambda, given by function fun_lambda,
# finds the maximum of lambda in a rectangular region given by
# [xMin,xMax,yMin,yMax].
def fun_Neg(x):
    return -fun_lambda(x[0], x[1]);  # negative of lambda
#fun_Neg = lambda x: -fun_lambda(x[0], x[1]);  # negative of lambda

xy0 = [(xMin + xMax) / 2, (yMin + yMax) / 2];  # initial value(ie centre)
# Find largest lambda value
resultsOpt = minimize(fun_Neg, xy0, bounds=((xMin, xMax), (yMin, yMax)));
lambdaNegMin = resultsOpt.fun;  # retrieve minimum value found by minimize
lambdaMax = -lambdaNegMin;


###END -- find maximum lambda -- END ###

# define thinning probability function
def fun_p(x, y):
    return fun_lambda(x, y) / lambdaMax;
#fun_p = lambda x, y: fun_lambda(x, y) / lambdaMax;

# for collecting statistics -- set numbSim=1 for one simulation
numbPointsRetained = np.zeros(numbSim);  # vector to record number of points
for ii in range(numbSim):
    # Simulate a Poisson point process
    numbPoints = np.random.poisson(areaTotal * lambdaMax);  # Poisson number of points
    xx = np.random.uniform(0, xDelta, ((numbPoints, 1))) + xMin;  # x coordinates of Poisson points
    yy = np.random.uniform(0, yDelta, ((numbPoints, 1))) + yMin;  # y coordinates of Poisson points

    # calculate spatially-dependent thinning probabilities
    p = fun_p(xx, yy);

    # Generate Bernoulli variables (ie coin flips) for thinning
    booleRetained = np.random.uniform(0, 1, ((numbPoints, 1))) < p;  # points to be retained

    # x/y locations of retained points
    xxRetained = xx[booleRetained];
    yyRetained = yy[booleRetained];
    numbPointsRetained[ii] = xxRetained.size;

# Plotting
plt.scatter(xxRetained, yyRetained, edgecolor='b', facecolor='none', alpha=0.5);
plt.xlabel('x');
plt.ylabel('y');
plt.xlim([xMin, xMax]);
plt.ylim([xMin, xMax]);

source

That pattern comes from a spatially-explicit thinning of a CSR pattern:

Code
# Plotting
plt.scatter(xx, yy, edgecolor='b', facecolor='none', alpha=0.5);
plt.xlabel('x');
plt.ylabel('y');

Regular Patterns

Regular Processes

Less grouped than CSR

  • fewer high densities
  • dispersed
  • repulsion, competition

Underdispersion

  • variance < mean
  • less variation in densities than CSR

Inhibition Process

Minimum Permissible Distance

  • no two points closer than \(\delta\)
  • packing intensity \(\tau = \lambda \pi \delta^2 / 4\)

Matern Process

  • thinned Poisson process using \(\delta\)
  • sequential inhibition process, generate points conditional on previous points and distance (denser than the thinned approach)

Matern (Thinning)

np.random.seed(12345)
delta = 0.1
n = 20
xy = np.random.random((n,2))
xy
from scipy.spatial import distance_matrix

d = distance_matrix(xy, xy) # 20 x 20 distance matrix
d[0] # first row
array([0.        , 0.75403388, 0.4570564 , 0.33860475, 0.38256491,
       0.67009276, 0.94484483, 0.716711  , 0.56856568, 0.40881349,
       0.49326812, 0.46210886, 0.64101492, 0.36620498, 0.20105384,
       1.02432357, 0.29284635, 0.4855703 , 0.42540863, 0.41333518])

Determine which observations to thin

ijs = np.where(d<delta)
i,j = ijs
pairs = list(zip(i[i!=j], j[i!=j]))
print("The pairs within delta of one another:")
print(pairs)
drop = []

for left, right in pairs:
    if left in drop or right in drop:
        continue
    else:
        drop.append(left)

print("Observations to drop:")
print(drop)
The pairs within delta of one another:
[(3, 9), (3, 13), (9, 3), (9, 13), (9, 19), (13, 3), (13, 9), (19, 9)]
Observations to drop:
[3, 9]
import pandas as pd
df = pd.DataFrame(data=xy, columns=['x', 'y'])
df['thin'] = False
df.iloc[drop, df.columns.get_loc('thin')] = True
df.head()
x y thin
0 0.929616 0.316376 False
1 0.183919 0.204560 False
2 0.567725 0.595545 False
3 0.964515 0.653177 True
4 0.748907 0.653570 False
import seaborn as sns
sns.scatterplot(x='x', y='y', hue='thin', data=df);

Matern (Sequential)

delta = 0.1
N = 20
n = 1
xy = np.zeros((N,2))
xy[0,:] = np.random.rand(1,2)
while n < N:
    candidate = np.random.rand(1,2)
    d = distance_matrix(xy[:n,:], candidate)
    if d.min() > delta:
        xy[n,:] = candidate
        n += 1

df = pd.DataFrame(data=xy, columns=['x', 'y'])
sns.scatterplot(x='x', y='y', data=df);

CSR n=20

delta = 0.1
xy = np.random.rand(20,2)
df = pd.DataFrame(data=xy, columns=['x', 'y'])
sns.scatterplot(x='x', y='y', data=df);
