Geographic Information Systems for Public Policy - Lecture V

Raster Data Models

Sergio Rey

Last Time

  • Vector Attributes
  • Table Joins
  • Virtual Layers

Today

  • Raster Data Model
  • Conversions
  • Rasters in Public Policy/Social Sciences

Raster Data Model

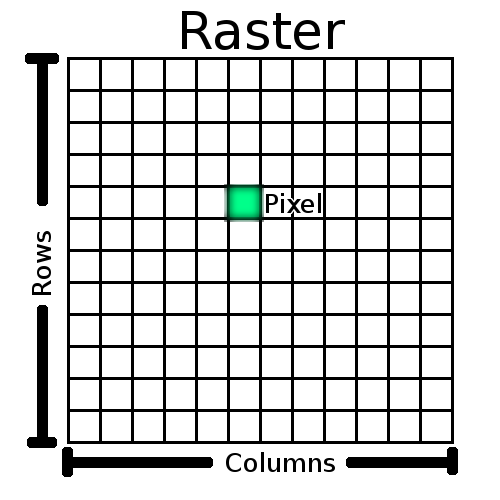

  • Rasters composed of a matrix of pixels (cells)
  • Each pixel contains a value representing the conditions for the area covered by that pixel
figure

Advantages of Rasters

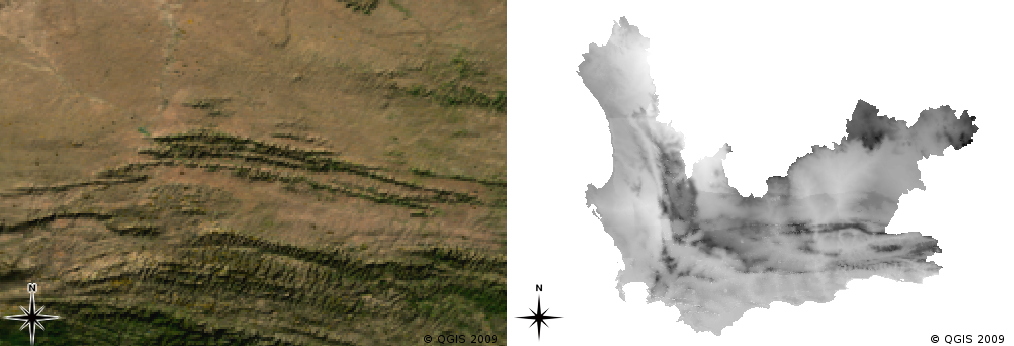

  • Representing continuous spatial variation
  • More efficient than small polygons (in the vector model)
    figure

Georeferencing Rasters

  • Defines the correspondence between each pixel and location on the earth’s surface
  • Coordinates of top left pixel in the images
  • Size of each pixel in X and Y direction
  • Rotation angle

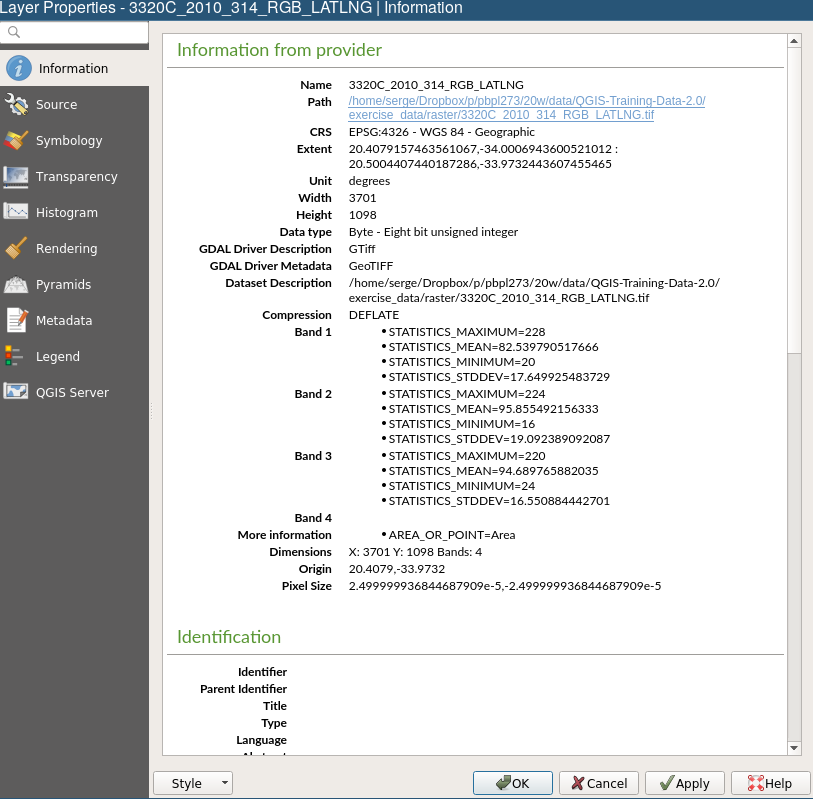

Raster in QGIS

figure

Raster in QGIS

figure

Sources of raster data

Remote Sensing Satellites

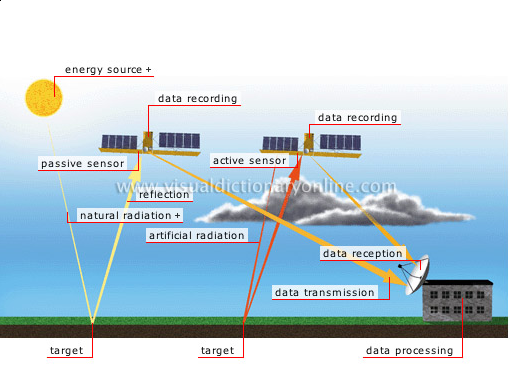

Remote Sensors

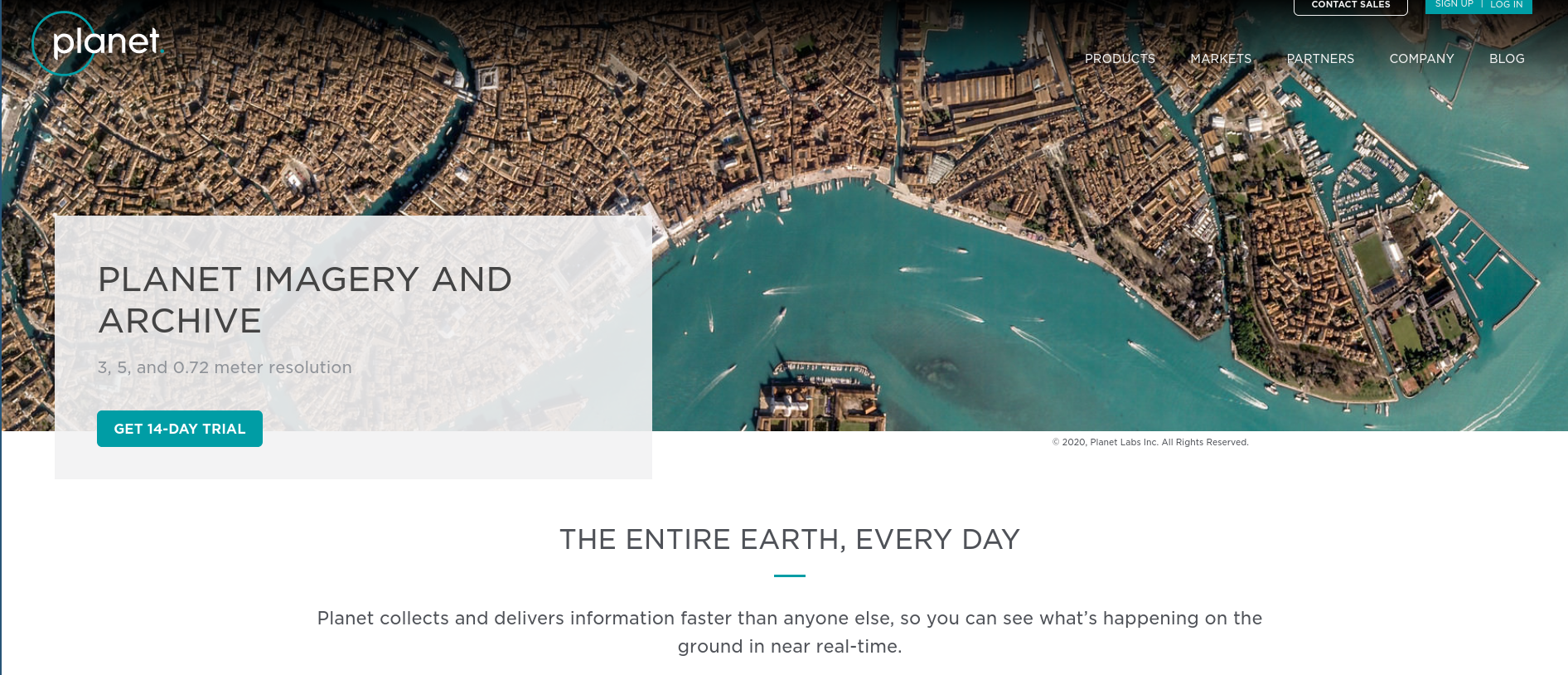

Planet

213_planet

Earth Engine Timelapse

‘url’

Remote Sensing Imagery Resolution

  • Spatial Resolution
  • Spectral Resolution
  • Temporal Resultion

Spatial Resolution

How much area is represented in each pixel

  • MODIS 500m x 500m
  • SPOT5 satellites: 10m x 10m
  • Areal Photography, drones: 50cm x 50cm

Remember: images with pixel size covering a small area are called high resolution images.

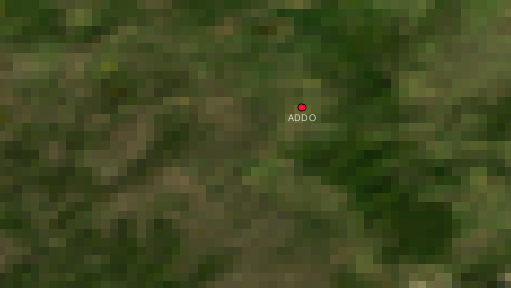

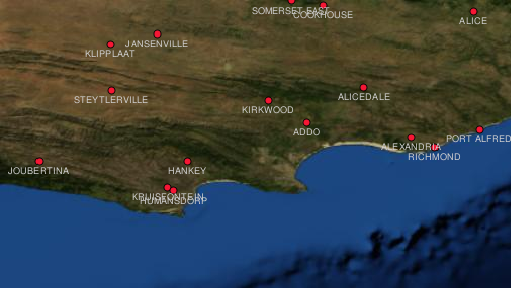

Spatial Resolution and Scale

Spectral Resolution

  • The number of spectral bands in which a sensor can collect reflected radiance
  • Choice depends upon application of use
  • Different types of ground targets have different spectral signatures
213_planet

Temporal Resolution

Revisit Periods for Satellites

  • SPOT5 - 3 days
  • Modis - daily
  • Airborne - as needed

Conversions

Which Model?

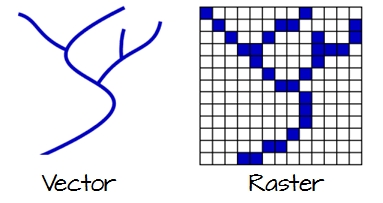

vector v. raster

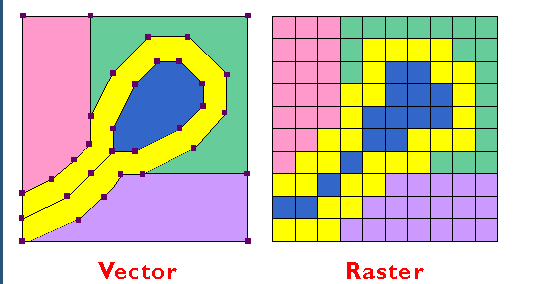

Vector to raster conversion

240_vec2ras

Raster to vector conversion

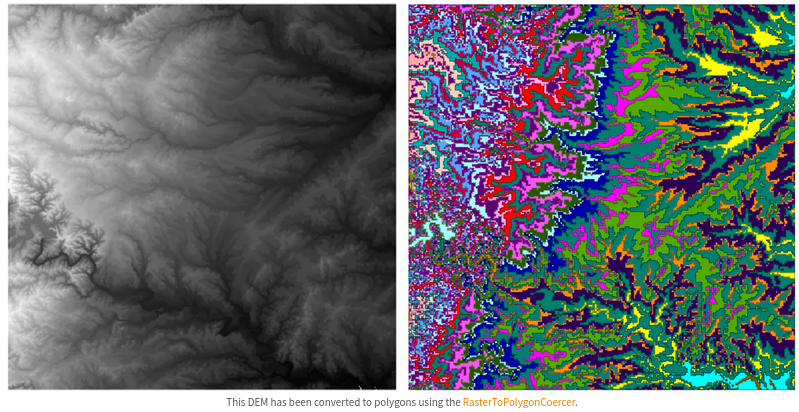

241_ras2vec

Rasters in GIS for Public Policy

  • Measures of environmental variables
  • Risk surfaces
  • Dasymetric mapping and areal interpolation

Environmental variables

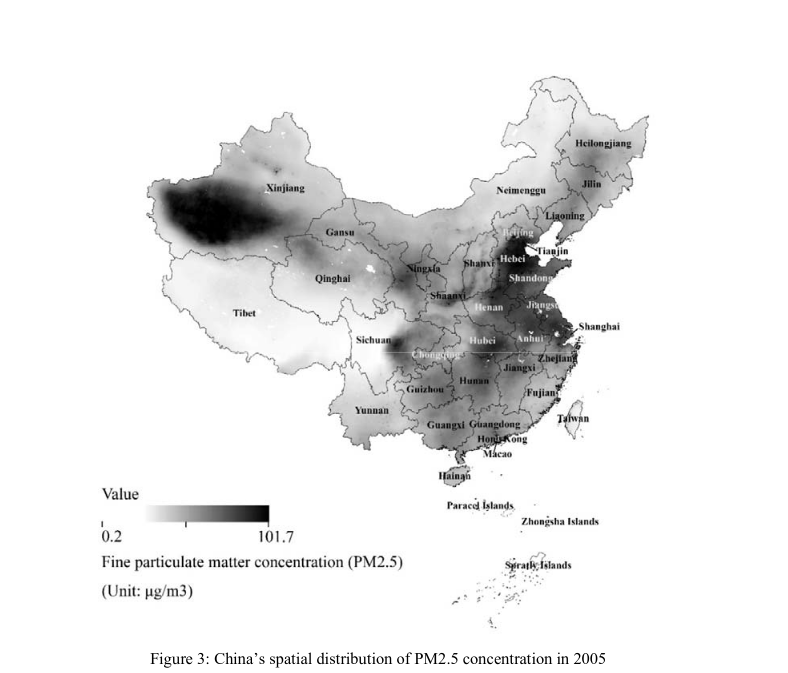

Freeman et al. (2017) “Willingness to pay for clean air in China”

303_willingness

FEMA: Risk Surface

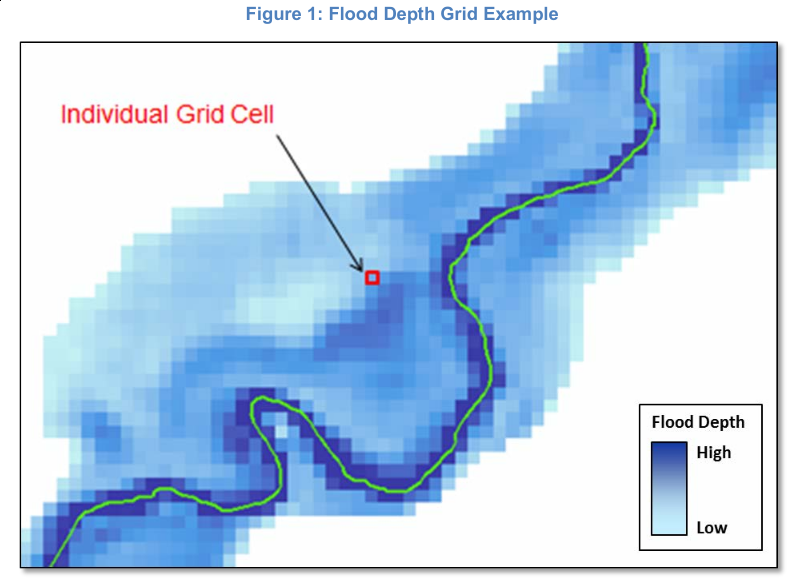

307_risk

Dasymetric Mapping

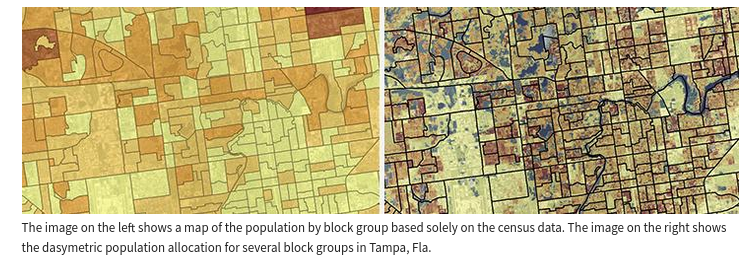

301_dasymetric

NSF-Neighborhoods

309_nsf_neighborhoods

Interpolation and Harmonization

Tobler

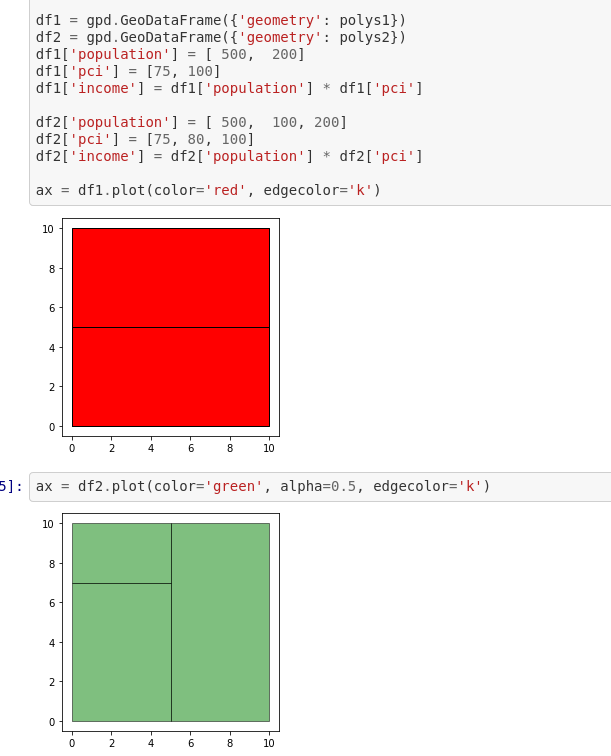

304_

Tobler: Voting Precincts

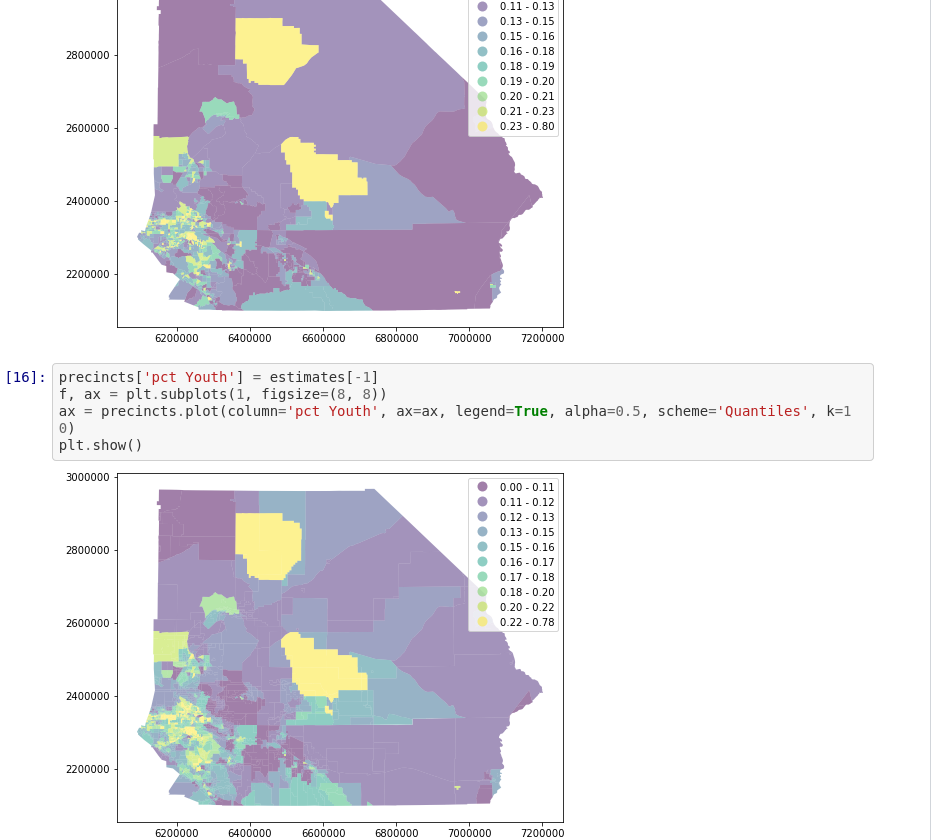

305_

Tobler: Dasymetric

305_

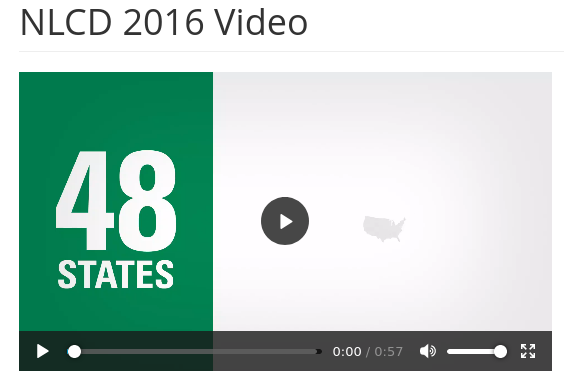

National Land Cover Database

figure

Next Up

  • Coordinate Reference Systems
