Spatial Weights

Serge Rey

Spatial Weights

Spatial weights are mathematical structures used to represent spatial relationships. Many spatial analytics, such as spatial autocorrelation statistics and regionalization algorithms rely on spatial weights. Generally speaking, a spatial weight \(w_{i,j}\) expresses the notion of a geographical relationship between locations \(i\) and \(j\). These relationships can be based on a number of criteria including contiguity, geospatial distance and general distances.

libpysal offers functionality for the construction, manipulation, analysis, and conversion of a wide array of spatial weights.

We begin with construction of weights from common spatial data formats.

Imports

import warnings
warnings.simplefilter("ignore")
import libpysal
from libpysal.weights import Queen, Rook, KNN, Kernel, DistanceBand
import numpy as np
import geopandas
import pandas
%matplotlib inline
import matplotlib.pyplot as plt
from splot.libpysal import plot_spatial_weights

There are functions to construct weights directly from a file path.

Weight Types

  • Contiguity
  • Distance Based Weights

Contiguity Weights

Contiguity Weights

  • Alternative Definitions
  • Queen
  • Rook
  • Bishop

Queen Weights

A commonly-used type of weight is a queen contigutiy weight, which reflects adjacency relationships as a binary indicator variable denoting whether or not a polygon shares an edge or a vertex with another polygon. These weights are symmetric, in that when polygon \(A\) neighbors polygon \(B\), both \(w_{AB} = 1\) and \(w_{BA} = 1\).

Constructing Queen Weights

To construct queen weights from a shapefile, we will use geopandas to read the file into a GeoDataFrame, and then use libpysal to construct the weights:

path = "~/data/scag_region.parquet"
df = geopandas.read_parquet(path)
df = df.to_crs(26911)  #UTM zone 11N
qW = Queen.from_dataframe(df)
qW
<libpysal.weights.contiguity.Queen at 0x7ae20613b8b0>

Weight Attributes

All weights objects have a few traits that you can use to work with the weights object, as well as to get information about the weights object.

To get the neighbors & weights around an observation, use the observation’s index on the weights object, like a dictionary:

qW[155] #neighbors & weights of the 156th observation (0-index remember)
{4528: 1.0, 547: 1.0, 2133: 1.0, 2744: 1.0}

Weights Matrix

A full, dense matrix describing all of the pairwise relationships is constructed using the .full method, or when libpysal.weights.full is called on a weights object:

Wmatrix, ids = qW.full()
#Wmatrix, ids = libpysal.weights.full(qW)
Wmatrix
array([[0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       ...,
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.]])

Number of Neighbors

n_neighbors = Wmatrix.sum(axis=1) # how many neighbors each region has
n_neighbors[155]
np.float64(4.0)
qW.cardinalities[155]
4

Note that this matrix is binary, in that its elements are either zero or one, since an observation is either a neighbor or it is not a neighbor.

Standardization

However, many common use cases of spatial weights require that the matrix is row-standardized. This is done simply in PySAL using the .transform attribute

qW.transform = 'r'
('WARNING: ', 4285, ' is an island (no neighbors)')

Now, if we build a new full matrix, its rows should sum to one:

Wmatrix, ids = qW.full()
Wmatrix.sum(axis=1) #numpy axes are 0:column, 1:row, 2:facet, into higher dimensions
array([1., 1., 1., ..., 1., 1., 1.])

Sparse Weights

Since weight matrices are typically very sparse, there is also a sparse weights matrix constructor:

qW.sparse
<Compressed Sparse Row sparse matrix of dtype 'float64'
    with 29374 stored elements and shape (4580, 4580)>
qW.pct_nonzero #Percentage of nonzero neighbor counts
0.14003356152628668

Neighbors

Let’s look at the neighborhoods of the 101th observation

qW.neighbors[100]
[789, 790, 1991, 3676, 791]
len(qW.neighbors[100])
5

Plotting

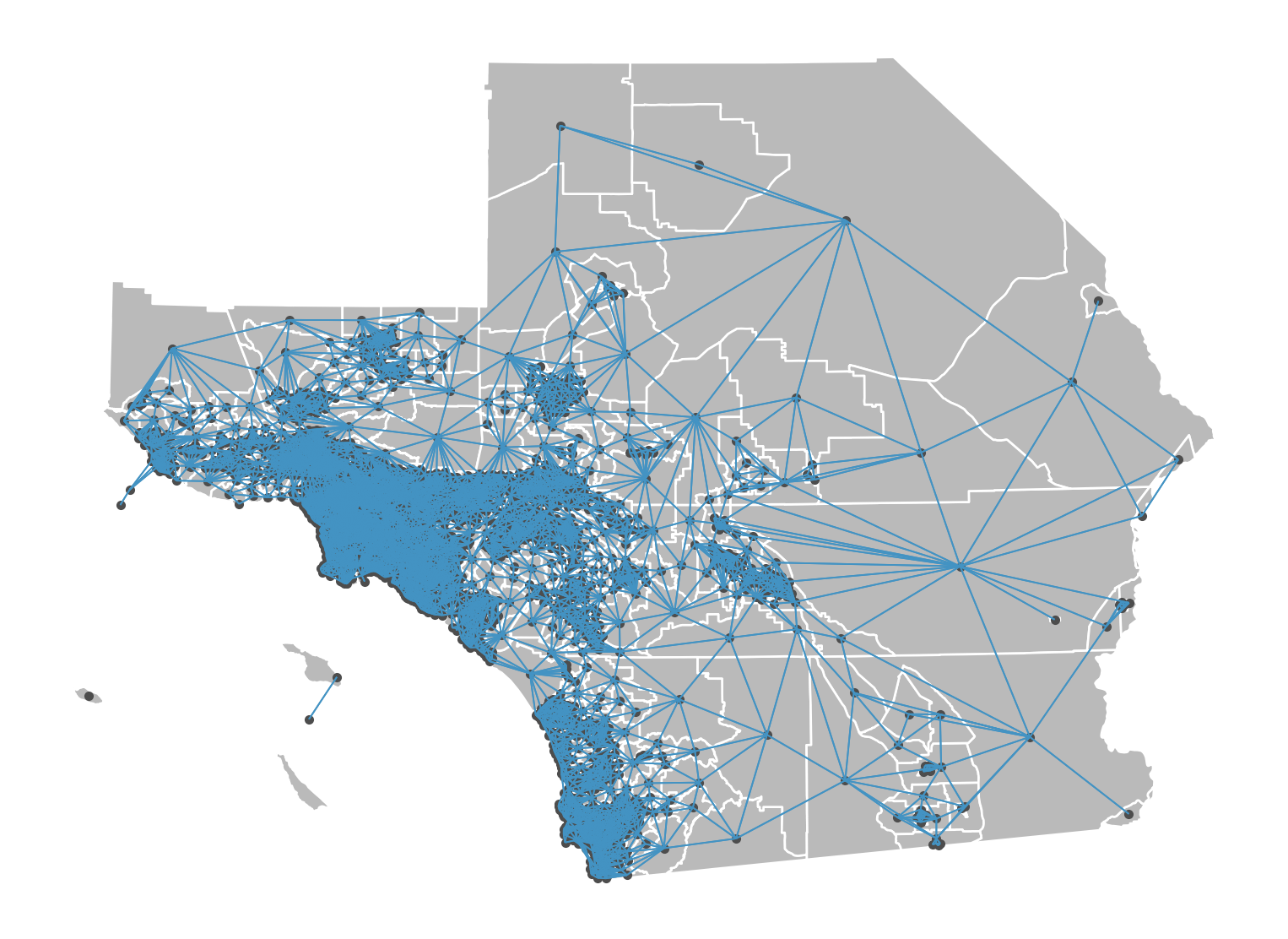

plot_spatial_weights(qW, df)

Connectivity Histogram

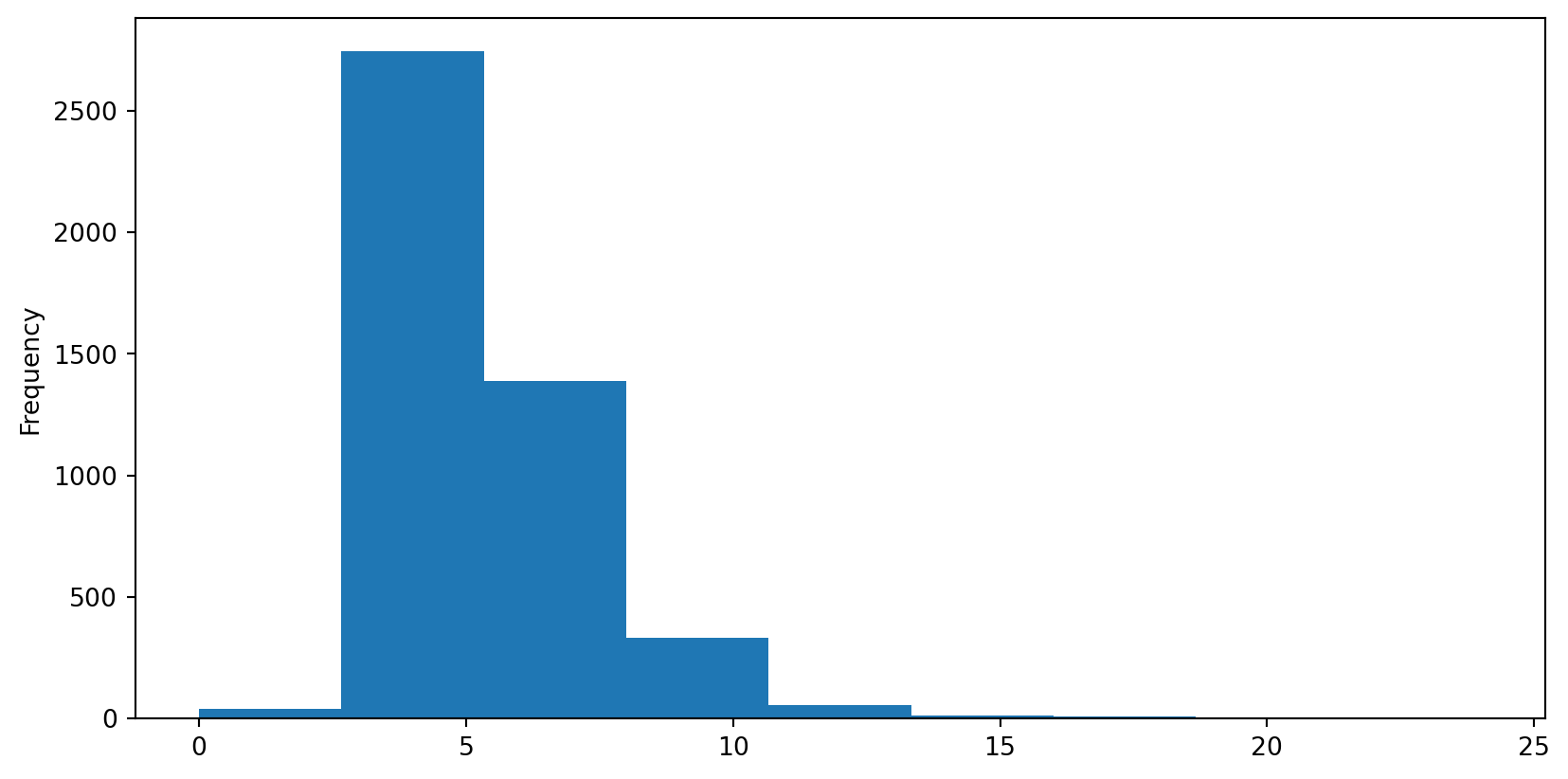

pandas.Series(qW.cardinalities).plot.hist(bins=9)

Cardinalities

qW.cardinalities.values()
dict_values([9, 9, 4, 7, 7, 5, 5, 6, 5, 8, 9, 8, 4, 3, 5, 5, 6, 6, 4, 5, 5, 6, 7, 9, 6, 4, 7, 8, 7, 5, 7, 2, 6, 6, 8, 3, 7, 7, 5, 8, 6, 5, 5, 4, 6, 6, 7, 7, 4, 6, 7, 4, 5, 6, 13, 6, 7, 6, 8, 6, 6, 6, 2, 6, 6, 8, 6, 7, 7, 6, 3, 5, 6, 6, 3, 7, 6, 5, 5, 5, 8, 8, 6, 8, 9, 7, 7, 6, 7, 5, 5, 7, 7, 6, 5, 7, 8, 8, 4, 7, 5, 4, 4, 6, 9, 6, 6, 7, 4, 8, 6, 6, 5, 6, 6, 6, 6, 7, 6, 8, 6, 6, 6, 8, 6, 6, 5, 8, 4, 5, 7, 5, 5, 5, 5, 5, 2, 4, 4, 7, 6, 8, 6, 9, 4, 6, 7, 5, 5, 6, 6, 4, 8, 9, 7, 4, 8, 4, 6, 5, 5, 4, 5, 6, 7, 8, 4, 6, 5, 6, 6, 6, 4, 6, 7, 6, 5, 6, 7, 6, 7, 7, 7, 7, 3, 10, 6, 6, 7, 7, 5, 6, 7, 8, 6, 5, 9, 7, 9, 6, 6, 4, 6, 6, 5, 7, 7, 7, 6, 4, 7, 8, 7, 5, 6, 6, 4, 6, 6, 5, 9, 7, 5, 7, 4, 7, 7, 3, 6, 7, 5, 5, 6, 6, 5, 4, 6, 5, 5, 6, 5, 10, 4, 3, 6, 1, 8, 6, 4, 5, 5, 7, 6, 4, 7, 4, 5, 6, 6, 5, 10, 3, 5, 5, 9, 5, 7, 5, 5, 7, 5, 8, 4, 6, 5, 7, 7, 7, 5, 6, 7, 5, 3, 7, 5, 4, 6, 3, 5, 6, 5, 5, 5, 4, 4, 7, 7, 5, 5, 5, 7, 9, 6, 4, 4, 5, 7, 4, 4, 7, 4, 6, 6, 4, 8, 6, 7, 5, 8, 6, 7, 6, 8, 8, 4, 5, 7, 6, 3, 5, 5, 4, 6, 6, 7, 5, 5, 5, 3, 5, 7, 6, 8, 5, 5, 5, 7, 6, 6, 7, 3, 4, 8, 4, 7, 4, 6, 6, 4, 4, 4, 5, 3, 5, 6, 4, 6, 7, 8, 5, 6, 6, 6, 7, 5, 8, 5, 3, 5, 5, 6, 4, 7, 7, 7, 4, 6, 5, 6, 9, 4, 7, 5, 5, 5, 7, 4, 7, 8, 7, 7, 6, 5, 5, 7, 5, 9, 5, 5, 6, 4, 8, 6, 4, 5, 5, 5, 7, 6, 6, 3, 6, 7, 5, 4, 5, 5, 7, 7, 5, 4, 6, 6, 6, 5, 5, 5, 17, 7, 6, 6, 14, 5, 5, 6, 6, 4, 11, 7, 6, 4, 6, 5, 7, 6, 6, 4, 7, 4, 6, 4, 7, 7, 6, 8, 5, 6, 8, 6, 5, 8, 8, 6, 4, 5, 5, 3, 6, 4, 6, 6, 6, 5, 6, 4, 4, 6, 7, 7, 8, 4, 5, 17, 7, 5, 6, 5, 7, 8, 6, 4, 7, 5, 7, 6, 4, 4, 5, 5, 4, 4, 4, 5, 3, 5, 4, 5, 3, 4, 5, 7, 7, 4, 7, 5, 4, 5, 12, 9, 9, 5, 4, 6, 7, 6, 6, 3, 8, 4, 8, 4, 6, 8, 4, 6, 5, 9, 6, 7, 4, 4, 8, 7, 4, 8, 5, 5, 7, 6, 5, 7, 4, 8, 6, 5, 8, 6, 6, 6, 6, 4, 5, 6, 8, 5, 8, 5, 8, 5, 8, 8, 6, 8, 7, 6, 7, 6, 5, 5, 7, 9, 3, 6, 8, 8, 7, 8, 5, 4, 6, 5, 6, 9, 7, 6, 7, 8, 3, 6, 6, 4, 7, 6, 5, 3, 5, 5, 8, 6, 8, 3, 8, 6, 8, 6, 6, 5, 8, 4, 8, 8, 7, 4, 5, 6, 6, 7, 7, 7, 5, 7, 4, 8, 6, 8, 8, 6, 4, 5, 7, 6, 6, 7, 5, 7, 8, 4, 6, 7, 6, 6, 8, 7, 7, 4, 4, 8, 7, 7, 8, 11, 6, 7, 6, 10, 5, 6, 6, 6, 4, 5, 5, 8, 7, 4, 7, 6, 8, 6, 7, 6, 7, 7, 6, 6, 5, 6, 6, 6, 5, 7, 9, 4, 5, 6, 6, 5, 6, 7, 5, 10, 5, 7, 4, 5, 4, 5, 5, 5, 6, 10, 6, 6, 6, 5, 6, 7, 4, 4, 6, 6, 8, 6, 7, 8, 8, 6, 3, 5, 6, 5, 7, 5, 5, 7, 8, 6, 7, 5, 5, 6, 6, 6, 5, 6, 6, 8, 5, 8, 4, 6, 8, 4, 5, 3, 5, 5, 8, 5, 8, 7, 8, 7, 6, 10, 5, 7, 4, 4, 3, 9, 4, 6, 5, 4, 7, 7, 6, 9, 4, 6, 5, 5, 7, 5, 5, 9, 5, 6, 6, 5, 6, 5, 7, 5, 8, 8, 6, 7, 5, 7, 5, 5, 7, 7, 4, 7, 8, 6, 8, 7, 5, 7, 10, 5, 4, 7, 5, 6, 7, 7, 5, 5, 4, 6, 5, 6, 6, 7, 5, 7, 7, 6, 6, 5, 6, 4, 4, 6, 5, 6, 5, 6, 6, 5, 4, 5, 9, 9, 4, 5, 8, 6, 8, 5, 7, 7, 6, 6, 4, 9, 8, 6, 10, 5, 7, 6, 3, 6, 6, 8, 7, 5, 7, 5, 6, 8, 5, 6, 5, 5, 7, 4, 5, 4, 4, 5, 4, 5, 7, 5, 7, 6, 5, 7, 7, 6, 7, 6, 7, 7, 6, 7, 4, 4, 6, 7, 4, 6, 7, 8, 6, 8, 8, 2, 7, 4, 9, 5, 7, 7, 4, 6, 6, 4, 5, 5, 5, 9, 6, 8, 6, 9, 9, 7, 7, 5, 7, 5, 5, 5, 5, 4, 7, 6, 5, 6, 9, 6, 4, 6, 5, 6, 7, 6, 6, 4, 5, 3, 7, 4, 5, 6, 10, 4, 7, 6, 4, 6, 6, 8, 5, 6, 6, 7, 6, 6, 4, 7, 6, 7, 8, 6, 6, 7, 9, 6, 6, 9, 6, 8, 3, 5, 7, 8, 9, 7, 5, 5, 7, 7, 7, 6, 5, 6, 7, 7, 3, 6, 6, 5, 9, 5, 8, 7, 5, 6, 5, 7, 7, 7, 6, 6, 8, 6, 5, 6, 7, 3, 6, 6, 8, 7, 6, 8, 5, 7, 6, 5, 6, 7, 4, 4, 7, 5, 20, 6, 5, 6, 6, 6, 7, 5, 6, 7, 5, 4, 5, 4, 9, 4, 7, 6, 8, 7, 5, 5, 5, 5, 7, 5, 6, 6, 5, 3, 5, 4, 6, 8, 6, 2, 7, 5, 5, 5, 6, 8, 7, 7, 7, 8, 7, 6, 5, 5, 6, 5, 6, 5, 7, 6, 7, 4, 6, 4, 5, 7, 5, 9, 6, 7, 7, 5, 10, 8, 5, 5, 5, 7, 6, 6, 7, 6, 7, 6, 5, 4, 5, 5, 6, 7, 10, 4, 4, 6, 6, 8, 7, 5, 6, 6, 9, 5, 5, 6, 6, 8, 5, 7, 6, 4, 9, 7, 5, 5, 6, 5, 16, 5, 4, 6, 4, 8, 8, 6, 6, 7, 7, 5, 10, 7, 6, 7, 6, 7, 5, 7, 5, 7, 6, 7, 6, 4, 8, 6, 7, 6, 6, 5, 4, 4, 5, 9, 4, 8, 8, 7, 6, 6, 11, 6, 4, 6, 6, 4, 7, 5, 6, 7, 5, 5, 3, 7, 5, 5, 3, 6, 6, 9, 5, 8, 8, 3, 6, 5, 5, 8, 5, 5, 7, 5, 9, 8, 9, 6, 6, 6, 7, 8, 8, 7, 6, 7, 9, 4, 8, 9, 9, 7, 7, 8, 6, 5, 6, 5, 5, 6, 5, 5, 8, 6, 7, 5, 7, 4, 7, 5, 10, 7, 8, 5, 6, 9, 9, 9, 10, 4, 5, 6, 9, 4, 5, 6, 6, 5, 6, 8, 9, 9, 9, 10, 7, 9, 5, 3, 6, 7, 7, 9, 7, 8, 9, 8, 7, 8, 6, 7, 6, 9, 9, 5, 8, 3, 3, 7, 5, 7, 9, 9, 8, 7, 7, 10, 6, 8, 7, 6, 8, 6, 8, 5, 5, 5, 4, 5, 7, 8, 9, 7, 3, 6, 4, 7, 7, 7, 6, 10, 6, 7, 8, 7, 10, 9, 7, 6, 8, 5, 7, 7, 6, 5, 5, 5, 7, 5, 6, 4, 5, 6, 4, 9, 7, 4, 6, 4, 9, 9, 6, 8, 5, 9, 6, 9, 6, 7, 7, 6, 5, 10, 10, 7, 7, 7, 7, 8, 6, 3, 7, 4, 5, 6, 4, 10, 9, 5, 8, 6, 9, 5, 7, 5, 7, 5, 8, 8, 9, 9, 13, 7, 7, 8, 6, 1, 7, 6, 5, 6, 7, 9, 5, 7, 6, 4, 4, 3, 7, 8, 6, 7, 8, 6, 4, 6, 9, 8, 6, 6, 6, 8, 7, 7, 5, 5, 2, 3, 7, 6, 6, 6, 8, 5, 5, 6, 4, 5, 7, 8, 6, 9, 4, 5, 5, 3, 5, 10, 5, 15, 4, 6, 9, 8, 8, 7, 5, 8, 7, 8, 9, 8, 7, 5, 6, 8, 4, 9, 6, 9, 6, 6, 6, 5, 7, 10, 11, 11, 6, 5, 6, 7, 4, 5, 11, 16, 5, 7, 9, 7, 6, 7, 7, 6, 5, 9, 6, 10, 7, 5, 7, 6, 5, 3, 8, 3, 11, 5, 5, 9, 9, 7, 6, 6, 8, 10, 6, 10, 4, 8, 7, 4, 7, 4, 5, 9, 4, 5, 9, 9, 6, 6, 8, 9, 9, 4, 7, 10, 16, 7, 11, 7, 11, 5, 8, 9, 5, 11, 7, 5, 7, 5, 5, 7, 8, 9, 5, 11, 11, 7, 8, 6, 5, 6, 5, 7, 9, 4, 7, 8, 7, 8, 4, 6, 7, 9, 9, 8, 6, 4, 7, 4, 6, 7, 6, 8, 6, 7, 4, 8, 5, 7, 7, 10, 7, 7, 6, 4, 6, 6, 13, 3, 8, 9, 6, 4, 6, 5, 6, 12, 5, 2, 6, 5, 7, 6, 7, 8, 5, 7, 4, 6, 7, 10, 3, 17, 10, 8, 6, 5, 7, 14, 1, 12, 8, 4, 4, 8, 8, 4, 8, 6, 8, 6, 5, 3, 8, 6, 7, 8, 6, 9, 8, 5, 11, 5, 3, 7, 5, 4, 5, 3, 7, 7, 6, 5, 8, 2, 5, 6, 11, 8, 6, 6, 7, 6, 7, 6, 6, 4, 4, 6, 9, 6, 9, 6, 5, 4, 3, 5, 8, 7, 10, 4, 6, 7, 4, 6, 6, 4, 6, 4, 8, 6, 10, 8, 5, 8, 6, 4, 6, 6, 5, 11, 4, 7, 8, 7, 6, 5, 5, 10, 16, 8, 5, 7, 9, 3, 7, 5, 3, 4, 8, 6, 6, 7, 6, 9, 7, 7, 6, 6, 11, 7, 7, 8, 6, 6, 7, 4, 7, 6, 3, 7, 7, 6, 8, 15, 7, 6, 4, 6, 9, 6, 6, 6, 10, 7, 8, 4, 9, 11, 6, 6, 6, 4, 11, 6, 5, 5, 5, 5, 7, 5, 5, 5, 4, 4, 8, 4, 6, 5, 7, 8, 6, 7, 5, 6, 7, 7, 6, 4, 10, 5, 6, 7, 5, 4, 7, 5, 6, 5, 7, 5, 5, 10, 6, 5, 5, 3, 7, 5, 6, 6, 6, 7, 5, 4, 7, 6, 11, 6, 8, 6, 9, 5, 14, 4, 5, 13, 8, 6, 7, 4, 7, 5, 9, 5, 8, 4, 7, 7, 8, 7, 4, 7, 5, 10, 8, 9, 5, 7, 6, 4, 7, 8, 8, 12, 7, 6, 8, 10, 5, 7, 6, 6, 6, 5, 5, 5, 6, 9, 5, 7, 4, 7, 8, 5, 7, 6, 5, 7, 7, 4, 4, 6, 7, 7, 6, 8, 6, 5, 4, 6, 5, 5, 4, 6, 6, 6, 7, 5, 4, 6, 3, 6, 7, 1, 7, 11, 4, 4, 12, 7, 6, 8, 5, 7, 8, 3, 6, 5, 5, 5, 9, 6, 9, 6, 5, 3, 7, 6, 8, 8, 9, 7, 5, 7, 6, 6, 5, 5, 10, 4, 8, 5, 8, 4, 5, 6, 5, 14, 8, 1, 5, 6, 7, 8, 10, 4, 7, 5, 9, 5, 5, 7, 4, 4, 7, 5, 8, 6, 9, 6, 8, 7, 4, 6, 4, 7, 5, 4, 6, 3, 7, 6, 6, 7, 11, 8, 6, 7, 8, 5, 7, 7, 9, 6, 5, 6, 6, 8, 6, 9, 7, 7, 7, 8, 5, 5, 5, 9, 6, 5, 4, 7, 7, 5, 7, 5, 5, 6, 8, 6, 5, 6, 4, 6, 6, 7, 7, 5, 6, 9, 6, 5, 6, 5, 8, 9, 7, 11, 7, 11, 15, 6, 7, 8, 3, 10, 8, 10, 8, 8, 4, 6, 5, 7, 6, 5, 6, 6, 7, 5, 9, 9, 9, 7, 11, 6, 6, 6, 5, 6, 6, 8, 6, 7, 5, 7, 8, 10, 10, 9, 7, 3, 9, 10, 7, 7, 6, 10, 6, 6, 7, 4, 7, 4, 5, 6, 6, 5, 5, 7, 8, 7, 4, 7, 7, 7, 7, 7, 7, 7, 6, 7, 6, 7, 7, 8, 7, 7, 5, 8, 10, 8, 7, 7, 6, 6, 8, 7, 6, 5, 6, 6, 9, 6, 2, 7, 7, 7, 7, 6, 7, 7, 4, 9, 12, 5, 5, 5, 5, 4, 9, 5, 7, 6, 7, 6, 4, 8, 7, 7, 7, 3, 5, 6, 5, 5, 7, 8, 6, 9, 4, 5, 6, 7, 5, 4, 6, 9, 5, 6, 10, 10, 6, 8, 5, 6, 4, 7, 8, 8, 5, 4, 9, 6, 4, 6, 5, 7, 5, 7, 6, 4, 10, 5, 6, 5, 5, 4, 6, 4, 6, 16, 8, 3, 7, 6, 5, 5, 5, 7, 7, 6, 9, 7, 6, 6, 6, 8, 3, 8, 4, 5, 5, 6, 6, 8, 9, 4, 7, 8, 7, 5, 6, 6, 6, 12, 4, 5, 6, 7, 7, 4, 8, 5, 7, 6, 7, 7, 9, 8, 7, 6, 7, 7, 6, 7, 5, 6, 3, 6, 5, 3, 6, 10, 7, 6, 6, 6, 6, 13, 10, 6, 8, 4, 6, 5, 7, 8, 6, 7, 5, 8, 7, 7, 8, 13, 5, 10, 7, 6, 7, 7, 6, 7, 7, 7, 8, 4, 9, 7, 4, 5, 4, 6, 8, 8, 6, 10, 3, 5, 10, 8, 6, 6, 11, 7, 6, 6, 5, 5, 8, 4, 6, 4, 13, 4, 11, 7, 5, 7, 6, 6, 7, 5, 5, 6, 5, 10, 5, 5, 8, 10, 10, 6, 6, 7, 6, 8, 5, 5, 2, 5, 5, 11, 6, 6, 8, 13, 2, 3, 5, 4, 6, 5, 4, 5, 5, 5, 11, 5, 8, 7, 8, 7, 5, 6, 5, 6, 10, 3, 9, 5, 4, 6, 6, 9, 8, 6, 9, 6, 7, 5, 6, 3, 6, 9, 8, 7, 7, 4, 5, 8, 5, 8, 8, 7, 6, 8, 14, 6, 4, 7, 3, 9, 5, 6, 5, 5, 6, 7, 3, 9, 9, 5, 6, 6, 4, 4, 9, 7, 5, 4, 5, 15, 8, 7, 9, 6, 6, 5, 7, 6, 8, 4, 4, 5, 5, 3, 5, 3, 4, 4, 4, 7, 12, 8, 9, 9, 6, 3, 6, 4, 7, 7, 9, 4, 6, 9, 5, 7, 5, 10, 5, 10, 6, 9, 4, 6, 8, 5, 8, 12, 10, 5, 7, 6, 7, 10, 7, 9, 6, 7, 5, 6, 6, 8, 6, 6, 8, 4, 6, 6, 9, 6, 6, 7, 4, 4, 3, 8, 10, 6, 6, 25, 8, 8, 5, 5, 4, 7, 7, 5, 7, 6, 7, 7, 6, 6, 5, 8, 6, 6, 7, 6, 8, 5, 4, 5, 8, 6, 12, 6, 7, 8, 4, 4, 7, 7, 9, 9, 14, 3, 10, 6, 6, 5, 7, 14, 5, 8, 4, 8, 8, 6, 6, 4, 6, 10, 14, 8, 5, 7, 6, 9, 5, 6, 7, 7, 5, 7, 5, 6, 9, 6, 6, 8, 7, 3, 6, 5, 9, 4, 4, 6, 13, 4, 6, 4, 5, 5, 7, 6, 7, 14, 3, 5, 11, 6, 7, 7, 7, 5, 5, 6, 14, 7, 7, 7, 5, 3, 4, 8, 4, 6, 8, 2, 6, 10, 5, 12, 8, 9, 6, 5, 13, 6, 8, 5, 2, 5, 1, 5, 6, 5, 5, 4, 9, 6, 7, 3, 8, 5, 6, 7, 6, 7, 8, 7, 3, 8, 6, 7, 5, 7, 7, 6, 5, 7, 11, 9, 6, 6, 3, 4, 9, 8, 8, 8, 6, 5, 6, 5, 7, 15, 8, 10, 9, 10, 6, 5, 7, 6, 10, 6, 5, 12, 5, 5, 8, 8, 9, 4, 7, 4, 4, 8, 15, 6, 4, 12, 6, 6, 4, 6, 6, 8, 4, 7, 8, 6, 6, 8, 4, 5, 9, 7, 6, 6, 7, 7, 6, 6, 7, 9, 6, 7, 6, 8, 5, 5, 5, 10, 8, 6, 6, 7, 5, 6, 6, 6, 8, 8, 7, 6, 8, 5, 6, 7, 7, 7, 4, 7, 6, 6, 4, 11, 4, 7, 6, 5, 9, 10, 8, 6, 7, 6, 7, 6, 6, 7, 4, 7, 7, 5, 7, 7, 6, 9, 6, 6, 6, 7, 8, 4, 5, 3, 7, 5, 6, 8, 6, 6, 6, 16, 6, 5, 15, 10, 6, 7, 9, 7, 7, 8, 5, 9, 6, 5, 5, 4, 9, 11, 6, 6, 6, 8, 5, 5, 6, 4, 5, 7, 8, 8, 5, 4, 3, 8, 5, 4, 4, 5, 5, 6, 5, 3, 10, 8, 5, 9, 9, 6, 5, 3, 5, 6, 7, 7, 8, 5, 8, 6, 6, 4, 5, 4, 5, 9, 9, 4, 7, 5, 6, 9, 7, 4, 8, 8, 7, 6, 10, 7, 8, 11, 5, 7, 5, 6, 7, 9, 8, 7, 7, 8, 10, 3, 4, 6, 7, 7, 5, 7, 6, 5, 6, 9, 10, 3, 7, 5, 7, 8, 9, 5, 6, 2, 9, 7, 7, 4, 6, 6, 9, 7, 9, 6, 6, 7, 6, 7, 6, 5, 7, 8, 8, 5, 6, 6, 8, 6, 6, 6, 8, 7, 8, 6, 6, 8, 5, 7, 8, 4, 6, 5, 7, 8, 7, 7, 9, 5, 1, 8, 7, 5, 5, 7, 8, 5, 8, 6, 6, 4, 6, 6, 6, 7, 5, 5, 4, 7, 7, 7, 7, 6, 7, 5, 6, 6, 7, 6, 5, 6, 7, 9, 6, 7, 7, 4, 7, 7, 5, 6, 8, 5, 7, 7, 7, 7, 6, 7, 6, 14, 6, 9, 9, 10, 5, 6, 7, 7, 9, 4, 8, 10, 4, 8, 6, 5, 5, 6, 6, 6, 7, 7, 6, 3, 5, 10, 8, 9, 6, 8, 1, 4, 6, 7, 5, 7, 8, 7, 7, 7, 6, 5, 7, 5, 4, 10, 7, 9, 5, 8, 10, 7, 5, 9, 6, 6, 7, 8, 7, 7, 6, 7, 5, 6, 5, 8, 9, 6, 6, 6, 10, 5, 6, 7, 6, 8, 6, 7, 7, 6, 9, 5, 8, 4, 5, 7, 6, 5, 4, 4, 7, 8, 5, 5, 7, 5, 8, 7, 9, 6, 10, 6, 8, 8, 6, 7, 6, 6, 7, 9, 6, 5, 5, 8, 6, 7, 10, 6, 4, 14, 3, 6, 6, 8, 8, 7, 9, 6, 6, 10, 6, 8, 7, 6, 8, 6, 4, 5, 5, 5, 8, 4, 4, 6, 4, 6, 11, 4, 5, 6, 4, 6, 7, 5, 5, 3, 5, 6, 6, 9, 8, 9, 6, 6, 6, 6, 6, 8, 7, 7, 6, 4, 6, 5, 8, 6, 6, 5, 7, 8, 5, 7, 7, 6, 7, 3, 7, 4, 6, 5, 6, 5, 6, 6, 7, 10, 6, 6, 9, 7, 14, 6, 5, 7, 9, 8, 8, 9, 5, 4, 9, 4, 6, 5, 6, 8, 7, 6, 5, 5, 6, 5, 6, 7, 6, 6, 7, 7, 7, 6, 7, 6, 7, 6, 11, 6, 7, 7, 5, 4, 7, 6, 9, 7, 3, 6, 8, 5, 6, 3, 6, 7, 6, 3, 7, 11, 5, 7, 6, 6, 5, 6, 5, 7, 6, 8, 8, 9, 6, 6, 6, 7, 7, 10, 7, 9, 7, 6, 9, 8, 7, 6, 6, 5, 7, 8, 5, 7, 6, 6, 6, 9, 7, 4, 8, 7, 8, 7, 6, 6, 10, 5, 8, 4, 8, 5, 6, 7, 7, 7, 8, 7, 6, 9, 6, 7, 5, 4, 5, 7, 7, 5, 7, 7, 6, 6, 5, 7, 6, 5, 7, 5, 6, 8, 8, 5, 5, 5, 10, 6, 5, 6, 4, 9, 5, 6, 9, 8, 8, 7, 6, 8, 10, 6, 11, 6, 5, 10, 6, 8, 8, 7, 6, 10, 5, 7, 9, 6, 4, 8, 9, 7, 6, 6, 6, 5, 10, 6, 9, 5, 7, 7, 8, 6, 7, 5, 7, 6, 4, 7, 6, 8, 8, 5, 7, 6, 4, 7, 4, 5, 8, 5, 5, 9, 8, 5, 8, 6, 4, 7, 5, 3, 6, 6, 4, 7, 3, 5, 4, 4, 7, 8, 8, 7, 10, 8, 6, 6, 7, 5, 6, 5, 7, 8, 4, 7, 9, 5, 7, 5, 5, 7, 7, 7, 5, 5, 5, 6, 9, 6, 6, 8, 7, 5, 5, 7, 6, 8, 6, 8, 10, 9, 7, 8, 5, 6, 6, 7, 6, 8, 7, 6, 8, 5, 7, 5, 6, 7, 6, 5, 8, 5, 7, 3, 7, 6, 7, 8, 8, 4, 6, 2, 8, 6, 6, 5, 7, 5, 8, 8, 9, 7, 7, 7, 8, 7, 8, 6, 5, 8, 11, 10, 7, 7, 4, 6, 8, 5, 4, 8, 3, 5, 6, 8, 9, 7, 4, 5, 8, 8, 5, 5, 6, 6, 6, 7, 9, 6, 6, 11, 4, 7, 5, 9, 9, 6, 8, 6, 6, 5, 5, 8, 7, 7, 5, 7, 6, 12, 7, 6, 7, 5, 1, 10, 5, 3, 7, 5, 5, 6, 6, 7, 8, 8, 7, 5, 3, 5, 7, 7, 8, 9, 4, 5, 8, 8, 6, 5, 7, 7, 6, 7, 5, 8, 11, 5, 5, 4, 5, 5, 1, 9, 6, 9, 9, 5, 6, 7, 7, 9, 6, 7, 7, 7, 5, 4, 5, 6, 6, 5, 6, 4, 6, 6, 5, 5, 3, 5, 7, 4, 6, 4, 8, 6, 6, 6, 6, 6, 7, 4, 3, 4, 12, 6, 6, 6, 6, 8, 6, 6, 7, 12, 8, 5, 11, 4, 6, 6, 5, 6, 7, 6, 5, 7, 7, 10, 6, 5, 7, 6, 5, 6, 6, 6, 6, 5, 10, 19, 7, 7, 8, 5, 6, 9, 6, 6, 12, 5, 4, 5, 3, 12, 4, 6, 4, 7, 4, 9, 4, 5, 3, 4, 7, 9, 6, 5, 7, 8, 5, 6, 5, 4, 8, 7, 5, 7, 5, 4, 7, 6, 4, 7, 5, 5, 7, 6, 7, 8, 11, 5, 5, 8, 3, 5, 4, 6, 6, 3, 7, 7, 5, 6, 9, 12, 7, 5, 5, 6, 9, 5, 7, 10, 6, 9, 5, 6, 6, 6, 7, 8, 6, 5, 7, 5, 7, 5, 5, 5, 8, 6, 5, 5, 5, 7, 5, 5, 5, 7, 5, 5, 6, 10, 8, 7, 7, 5, 6, 6, 5, 12, 7, 8, 6, 6, 5, 8, 5, 5, 5, 5, 6, 5, 9, 10, 6, 6, 5, 4, 5, 4, 6, 6, 5, 7, 5, 7, 7, 4, 7, 5, 9, 6, 6, 4, 6, 6, 6, 5, 6, 6, 6, 6, 4, 8, 3, 5, 9, 7, 9, 6, 4, 12, 6, 7, 6, 7, 6, 8, 16, 7, 7, 5, 10, 7, 8, 6, 6, 7, 7, 11, 6, 11, 5, 6, 9, 5, 8, 6, 7, 5, 6, 7, 6, 8, 9, 7, 2, 10, 5, 7, 6, 7, 6, 6, 6, 6, 10, 4, 4, 6, 8, 6, 6, 9, 7, 6, 2, 6, 7, 5, 7, 5, 15, 8, 6, 8, 4, 6, 7, 7, 7, 8, 8, 7, 5, 5, 6, 5, 7, 7, 7, 5, 6, 9, 8, 9, 5, 6, 4, 6, 5, 5, 7, 5, 8, 5, 4, 5, 5, 7, 7, 7, 5, 6, 8, 9, 4, 6, 6, 11, 6, 8, 9, 6, 5, 6, 6, 8, 6, 5, 7, 6, 5, 7, 4, 9, 5, 4, 6, 6, 6, 3, 7, 6, 6, 5, 13, 7, 6, 8, 5, 7, 5, 5, 8, 7, 7, 7, 7, 6, 9, 10, 8, 9, 6, 6, 7, 10, 6, 7, 7, 6, 6, 6, 6, 5, 7, 7, 5, 6, 4, 6, 7, 9, 8, 4, 9, 5, 5, 6, 4, 7, 8, 9, 7, 2, 4, 7, 7, 7, 7, 7, 11, 8, 9, 6, 4, 6, 6, 5, 8, 7, 7, 6, 7, 8, 8, 8, 6, 6, 8, 9, 8, 9, 7, 7, 5, 7, 5, 9, 6, 4, 6, 7, 4, 9, 7, 4, 4, 5, 9, 10, 8, 10, 9, 5, 6, 6, 5, 7, 7, 6, 5, 6, 9, 8, 7, 4, 6, 6, 7, 4, 5, 7, 7, 5, 9, 6, 7, 6, 9, 9, 8, 7, 8, 5, 3, 4, 11, 14, 5, 5, 4, 3, 6, 6, 5, 6, 7, 6, 8, 8, 9, 7, 6, 2, 6, 6, 5, 5, 5, 3, 8, 8, 11, 7, 6, 7, 6, 6, 7, 8, 6, 7, 7, 6, 6, 8, 8, 5, 5, 16, 8, 6, 7, 9, 5, 8, 6, 5, 4, 7, 5, 6, 8, 7, 5, 6, 7, 6, 6, 7, 10, 7, 10, 9, 8, 7, 5, 8, 5, 8, 7, 7, 9, 9, 5, 7, 6, 6, 5, 7, 5, 6, 8, 7, 6, 6, 10, 6, 5, 5, 8, 5, 7, 5, 5, 7, 6, 6, 5, 6, 0, 6, 11, 5, 5, 9, 6, 5, 9, 5, 6, 6, 6, 6, 6, 7, 7, 11, 10, 4, 7, 5, 8, 8, 8, 5, 6, 6, 7, 8, 7, 8, 5, 5, 5, 6, 7, 7, 5, 8, 5, 5, 5, 10, 8, 5, 10, 5, 4, 5, 5, 6, 5, 9, 5, 4, 5, 7, 4, 4, 6, 15, 7, 6, 8, 7, 10, 7, 7, 5, 6, 7, 6, 6, 6, 8, 5, 6, 4, 2, 6, 5, 8, 8, 5, 6, 5, 7, 10, 7, 8, 7, 6, 8, 7, 11, 7, 6, 6, 8, 7, 10, 16, 6, 7, 6, 4, 5, 4, 4, 7, 8, 8, 5, 6, 4, 6, 3, 5, 9, 8, 4, 6, 4, 6, 3, 6, 9, 7, 8, 3, 14, 6, 8, 4, 7, 6, 5, 6, 4, 8, 5, 7, 7, 7, 7, 5, 5, 7, 5, 6, 6, 7, 7, 7, 7, 4, 11, 6, 7, 4, 3, 13, 5, 8, 9, 8, 6, 8, 7, 7, 6, 7, 8, 6, 6, 9, 5, 8, 6, 7, 11, 6, 5, 8, 7, 9, 5, 7, 5, 7, 8, 4, 4, 8, 5, 7, 5, 5, 6, 7, 9, 7, 6, 11, 8, 3, 5, 7, 11, 4, 6, 7, 7, 7, 6, 5, 5, 7, 5, 6, 6, 7, 6, 5, 7, 8, 6, 5, 7, 14, 10, 6, 7, 7, 5, 6, 11, 5, 6, 5, 10, 4, 3, 6, 5, 8, 6, 6, 6, 7, 7, 8, 5, 7, 6, 5, 8, 7, 9, 6, 5, 6, 8, 5, 7, 7, 7, 6, 7, 6, 8, 5, 7, 9, 8, 5, 7, 5, 8, 8, 9, 12, 7, 4, 7, 10, 8, 7, 7, 6, 6, 7, 6, 7])

Rook Weights

Rook weights are another type of contiguity weight, but consider observations as neighboring only when they share an edge. The rook neighbors of an observation may be different than its queen neighbors, depending on how the observation and its nearby polygons are configured.

We can construct this in the same way as the queen weights:

rW = Rook.from_dataframe(df)
rW.neighbors[100]
[789, 790, 1991, 791, 3676]
len(rW.neighbors[100])
5

Rook Graph

plot_spatial_weights(rW, df)

Connectivity Histogram

pandas.Series(rW.cardinalities).plot.hist(bins=9)

Bishop Weights

In theory, a “Bishop” weighting scheme is one that arises when only polygons that share vertexes are considered to be neighboring. But, since Queen contiguigy requires either an edge or a vertex and Rook contiguity requires only shared edges, the following relationship is true:

\[ \mathcal{Q} = \mathcal{R} \cup \mathcal{B} \]

where \(\mathcal{Q}\) is the set of neighbor pairs via queen contiguity, \(\mathcal{R}\) is the set of neighbor pairs via Rook contiguity, and \(\mathcal{B}\) via Bishop contiguity.

Bishop Weights

\[ \mathcal{Q} \setminus \mathcal{R} = \mathcal{B}\]

Bishop weights entail all Queen neighbor pairs that are not also Rook neighbors.

Bishop Weights

PySAL does not have a dedicated bishop weights constructor, but you can construct very easily using the w_difference function. This function is one of a family of tools to work with weights, all defined in libpysal.weights, that conduct these types of set operations between weight objects.

bW = libpysal.weights.w_difference(qW, rW, constrained=False)

Bishop Graph

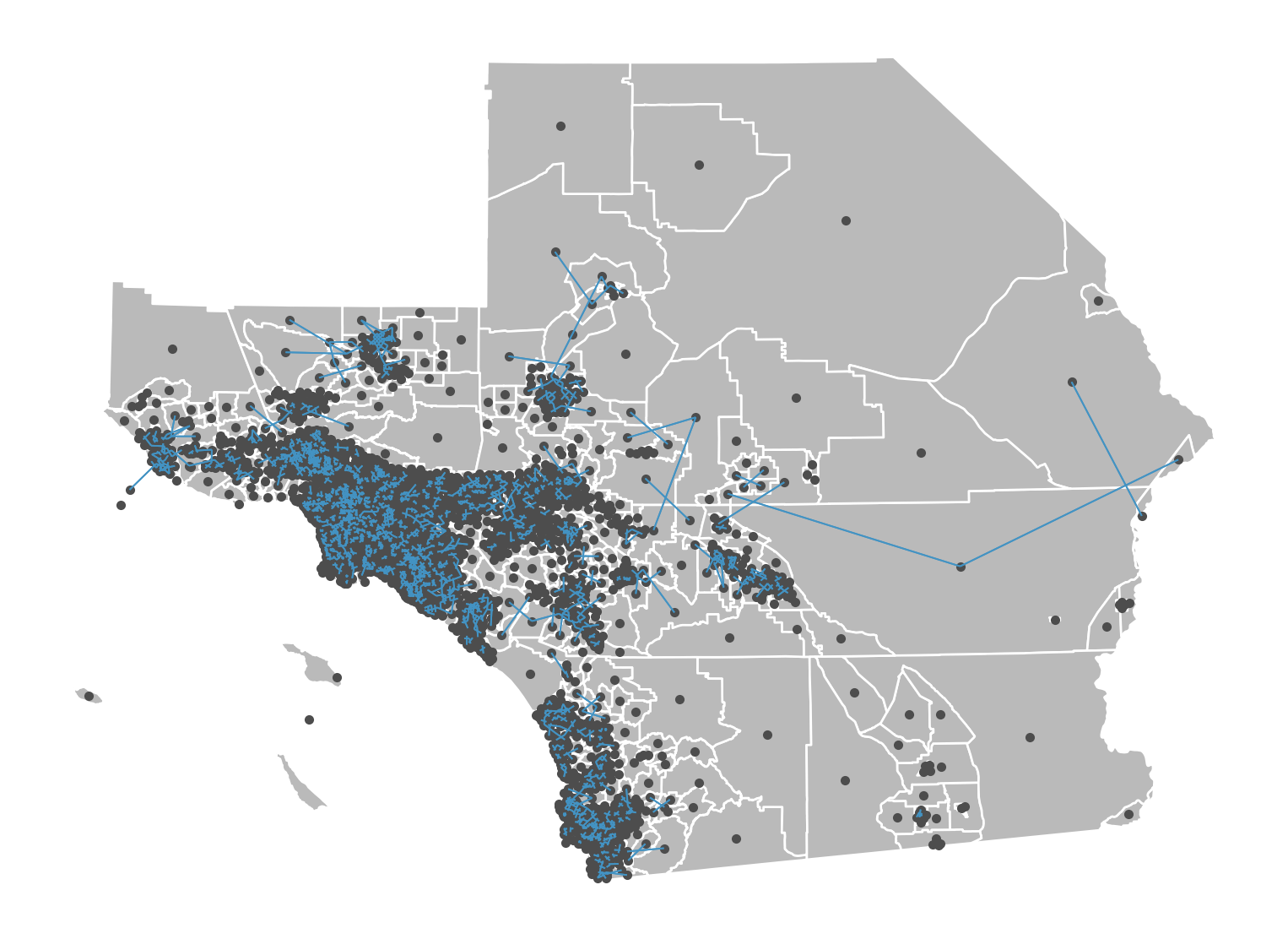

plot_spatial_weights(bW, df)

Connectivity

bW.histogram
[(np.int64(0), np.int64(1624)),
 (np.int64(1), np.int64(1728)),
 (np.int64(2), np.int64(881)),
 (np.int64(3), np.int64(292)),
 (np.int64(4), np.int64(55))]

Thus, many tracts have no bishop neighbors. But, a few do.

Bishop Connectivity Graph

plot_spatial_weights(bW, df)

Distance Based Weights

Distance

There are many other kinds of weighting functions in PySAL. Another separate type use a continuous measure of distance to define neighborhoods.

df.crs
<Projected CRS: EPSG:26911>
Name: NAD83 / UTM zone 11N
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- name: North America - between 120°W and 114°W - onshore and offshore. Canada - Alberta; British Columbia; Northwest Territories; Nunavut. United States (USA) - California; Idaho; Nevada, Oregon; Washington.
- bounds: (-120.0, 30.88, -114.0, 83.5)
Coordinate Operation:
- name: UTM zone 11N
- method: Transverse Mercator
Datum: North American Datum 1983
- Ellipsoid: GRS 1980
- Prime Meridian: Greenwich

Threshold Based Neighbors

Our coordinate system (UTM 11N) measures distance in meters, so that’s how we’ll define our neighbors

dist_band = DistanceBand.from_dataframe(df, threshold=2000)

Plotting Threshold Neighbor Graph

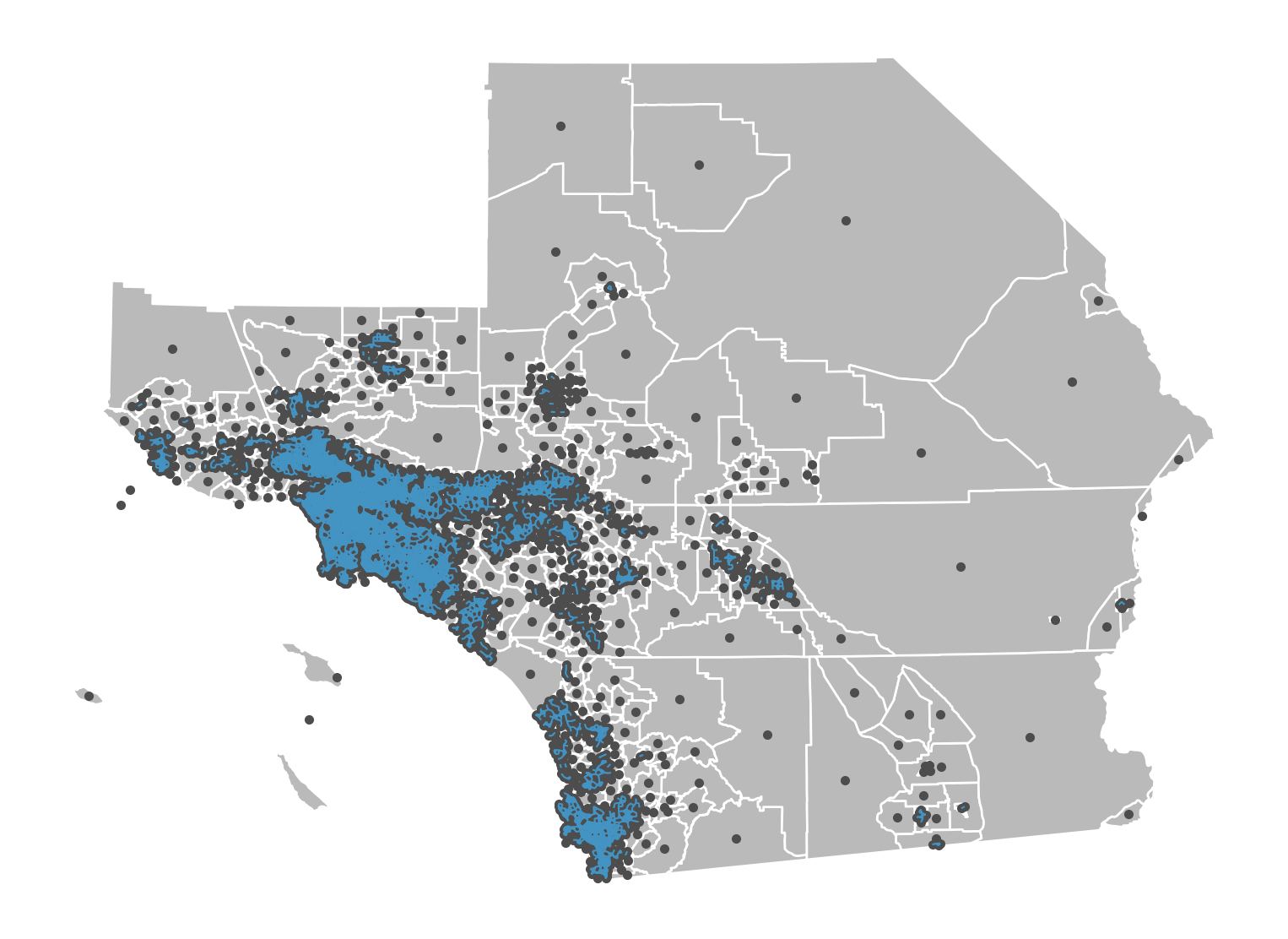

plot_spatial_weights(dist_band,df)

knn defined weights

radius_mile = libpysal.cg.sphere.RADIUS_EARTH_MILES
radius_mile
3958.755865744055
df_latlong = df.to_crs(4326)

Wrong Way to define KNN

knn8_bad = KNN.from_dataframe(df_latlong, k=8) # ignore curvature of the earth

Bad KNN

knn8_bad.histogram
[(np.int64(8), np.int64(4580))]

Correct Way to define KNN

knn8 = KNN.from_dataframe(df_latlong, k=8, radius=radius_mile)

Correct KNN

knn8.histogram
[(np.int64(8), np.int64(4580))]

Comparison

knn8_bad.neighbors[1487]
[np.int64(501),
 np.int64(2296),
 np.int64(2960),
 np.int64(974),
 np.int64(167),
 np.int64(4496),
 np.int64(2295),
 np.int64(4422)]
knn8.neighbors[1487]
[np.int64(501),
 np.int64(2960),
 np.int64(2296),
 np.int64(974),
 np.int64(167),
 np.int64(4496),
 np.int64(2881),
 np.int64(2297)]
set(knn8_bad.neighbors[1487]) == set(knn8.neighbors[1487])
False

Kernel W

Kernel Weights are continuous distance-based weights that use kernel densities to define the neighbor relationship. Typically, they estimate a bandwidth, which is a parameter governing how far out observations should be considered neighboring. Then, using this bandwidth, they evaluate a continuous kernel function to provide a weight between 0 and 1.

Many different choices of kernel functions are supported, and bandwidths can either be fixed (constant over all units) or adaptive in function of unit density.

For example, if we want to use adaptive bandwidths for the map and weight according to a gaussian kernel:

Adaptive gaussian kernel weights

bandwidth = the distance to the kth nearest neighbor for each observation

bandwith is changing across observations

kernelWa = Kernel.from_dataframe(df, k=10, fixed=False, function='gaussian')

Kernel Weights

plot_spatial_weights(kernelWa, df)

Kernel Weights (Continuous)

kernelWa.weights[0]
[0.3989422804014327,
 0.350004537433577,
 0.31104924482806384,
 0.30853347366341066,
 0.2992343856666809,
 0.281132887806544,
 0.2737643355852085,
 0.26431336729422755,
 0.26173661400901954,
 0.2613974031586016,
 0.2419707487162134]

Adaptive bandwidths

kernelWa.bandwidth
array([[1687.98315102],
       [1997.79763417],
       [1803.36975814],
       ...,
       [2468.39053934],
       [3480.80242265],
       [1749.83295263]])

Adaptive bandwidths

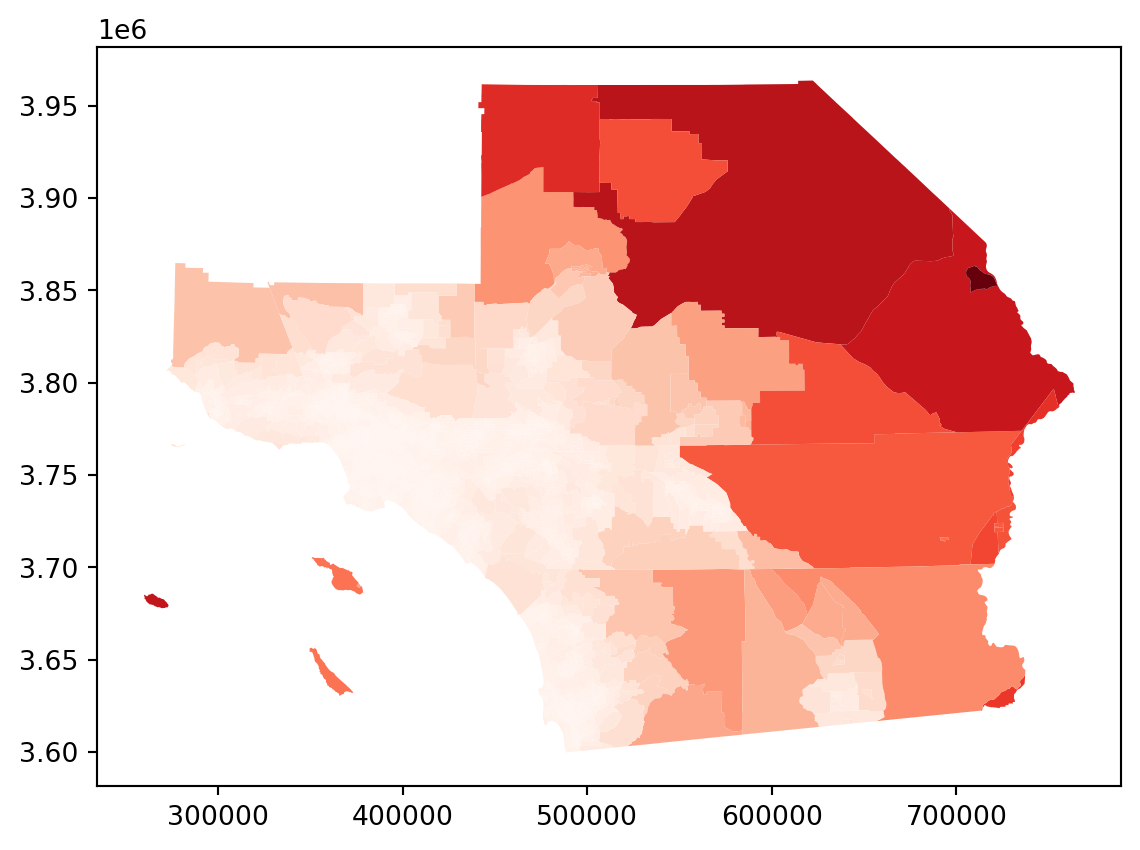

df.assign(bw=kernelWa.bandwidth.flatten()).plot('bw', cmap='Reds')

Block Weights

w,s,e,n = df.total_bounds
mx = (w+e)/2
my = (n+s)/2
import shapely
centroids = df.geometry.centroid
lon = centroids.apply(lambda p: p.x).values
lat = centroids.apply(lambda p: p.y).values

Regions

north = lat > my
south = lat <= my
east = lon > mx
west = lon <= mx
nw = west * north * 2
ne = east * north * 1
sw = west * south * 3
se = east * south *4
quad = nw + ne + sw + se
quad
array([3, 2, 2, ..., 2, 4, 2])

Regions

df['quad'] = quad

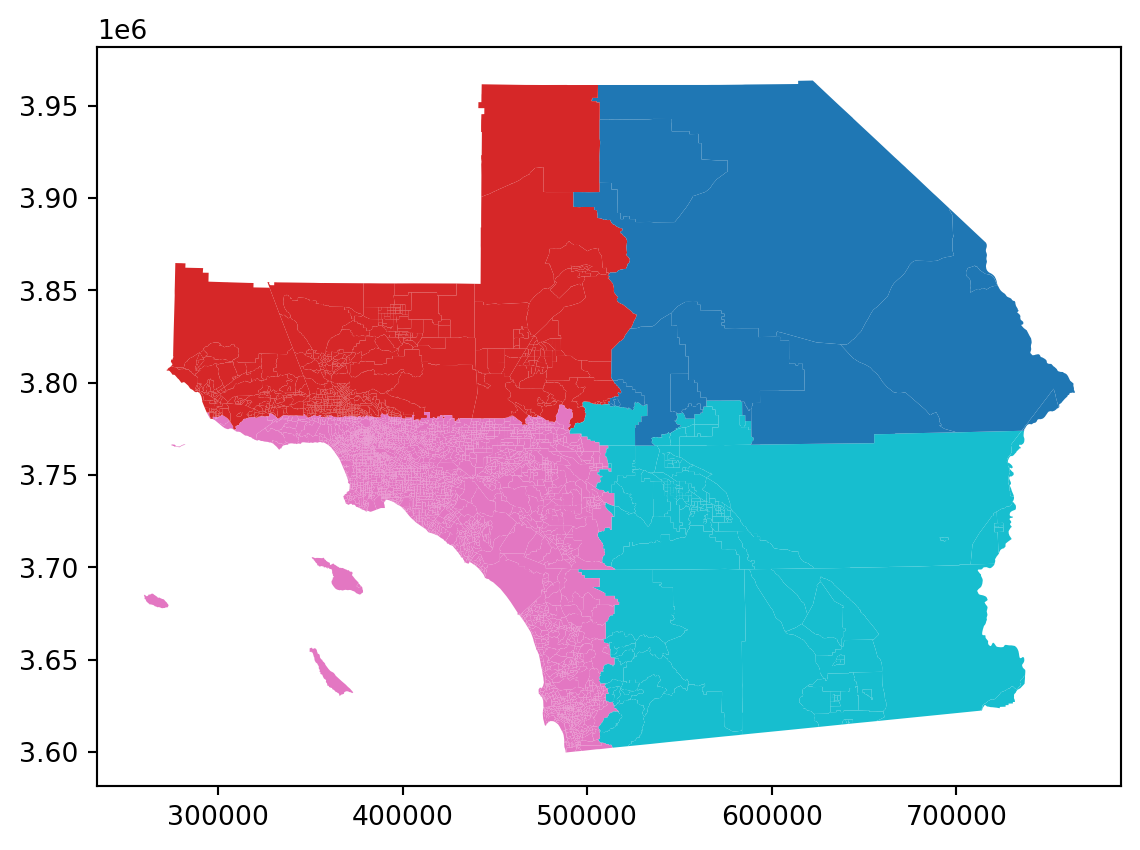

df.plot(column="quad", categorical=True)

Block Weights

blockW = libpysal.weights.block_weights(df["quad"])
blockW.n
4580
blockW.pct_nonzero
65.53761369920483

Connectivity

pandas.Series(blockW.cardinalities).plot.hist()

Region Membership

df.groupby(by='quad').count()
geoid n_asian_under_15 n_black_under_15 n_hispanic_under_15 n_native_under_15 n_white_under_15 n_persons_under_18 n_asian_over_60 n_black_over_60 n_hispanic_over_60 ... year n_total_housing_units_sample p_nonhisp_white_persons p_white_over_60 p_black_over_60 p_hispanic_over_60 p_native_over_60 p_asian_over_60 p_disabled geometry
quad
1 15 15 15 15 15 15 15 0 0 0 ... 15 15 15 0 0 0 0 0 0 15
2 761 761 761 761 761 761 761 0 0 0 ... 761 761 755 0 0 0 0 0 0 761
3 3625 3625 3625 3625 3625 3625 3625 0 0 0 ... 3625 3625 3612 0 0 0 0 0 0 3625
4 179 179 179 179 179 179 179 0 0 0 ... 179 179 179 0 0 0 0 0 0 179

4 rows × 194 columns

Conclusion

Recap of Key Points

  • Spatial Weights
  • Contiguity Weights
  • Distance Based Weights

Questions
